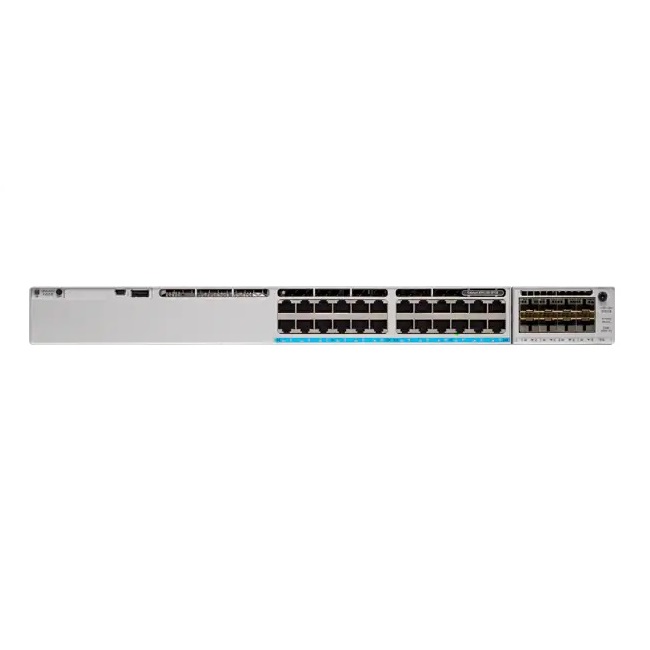

Switch Cisco Catalyst C9300L-24P-4X

Description

Performance

Interface

24 Ports 10/100/1000 PoE+ 505W, 4x 10G SFP+ uplinks

Switching capacity

128 Gbps

Stacking bandwidth

320 Gbps

Switching capacity with stacking

448 Gbps

Forwarding rate

95.23 Mpps

Forwarding rate with stacking

333.33 Mpps

Total number of MAC addresses

32,000

Total number of IPv4 routes (ARP plus learned routes)

32,000 (24,000 direct routes and 8000 indirect routes)

IPv4 routing entries

32,000

IPv6 routing entries

16,000

Multicast routing scale

8000

QoS scale entries

5120

ACL scale entries

5120

Packet buffer per SKU

16 MB buffer

FNF entries

64,000 flow

DRAM

8 GB

Flash

16 GB

VLAN IDs

4094

Total Switched Virtual Interfaces (SVIs)

1000

Jumbo frames

9198 bytes

Total routed ports per 9300 Series stack

416

Switch fundamentals

Layer 2, Routed Access (RIP, EIGRP Stub, OSPF – 1000 routes), PBR, PIM Stub Multicast (1000 routes)), PVLAN, VRRP, PBR, CDP, QoS, FHS, 802.1X, MACsec-128, CoPP, SXP, IP SLA Responder, SSO

Advanced switch capabilities and scale

BGP, EIGRP, HSRP, IS-IS, BSR, MSDP, PIM-BIDIR, IP SLA, OSPF

Network segmentation

VRF, VXLAN, LISP, SGT, MPLS, mVPN

Automation

NETCONF, RESTCONF, gRPC, YANG, PnP Agent, ZTP/Open PnP, GuestShell (On-Box Python)

Telemetry and visibility

Model-driven telemetry, sampled NetFlow, SPAN, RSPAN

High availability and resiliency

Nonstop Forwarding (NSF), Graceful Insertion and Removal (GIR), Fast Software Upgrade (FSU)

IOT integration

AVB, PTP, CoAP

Security

MACsec-256

Dimensions, Weight, and Mean Time Between Failures Metrics

Dimensions (H x W x D)

1.73 X 17.5 X 17.7 inch / 4.4 x 44.5 x 44.9 cm

Weight

14.99 Pounds / 6.81 Kilograms

Mean time between failures (hours)

340,710

Default AC power supply

715W

Available PoE power
