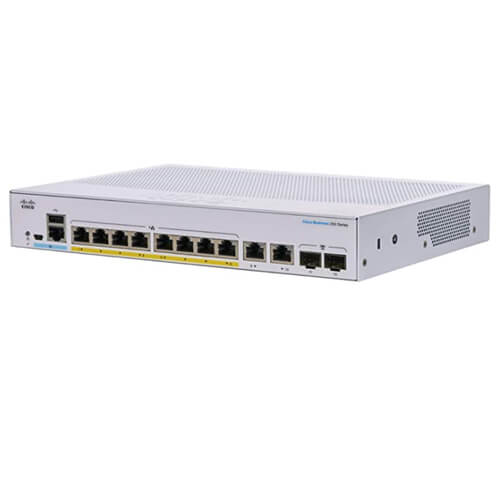

Switch Cisco Business CBS350-8P-E-2G
0₫
- Thương Hiệu: Cisco
- Mã: CBS350-8P-E-2G
- Port : 8 port PoE+ 10/100/1000 với công suất 67W và 2 cổng uplink combo copper/SFP
Ship nội thành Hà Nội (sau 20phút, trong ngày, hẹn giờ)
Ship COD toàn quốc: 24h-72h (có ship hỏa tốc), ship qua nhà xe
Địa chỉ: Số 4 ngõ 142 Hào Nam, P. Ô Chợ Dừa, Q. Đống Đa, Hà Nội
Thời gian làm việc: Giờ hành chính Thứ 2 đến thứ 7 (9h-12h, 13h30-17h30), Chủ nhật (gọi điện/ liên hệ trước)
Mô tả
Thông Số Kỹ Thuật Switch Cisco Business CBS350-8P-E-2G
| Performance | |
| Capacity in Millions of Packets per Second (mpps) (64-byte packets) | 14.88 |
| Switching Capacity in Gigabits per Second (Gbps) | 20.0 |
| Layer 2 Switching | Spanning Tree Protocol Port grouping/link aggregation – Up to 8 groups – Up to 8 ports per group with 16 candidate ports for each (dynamic) 802.3ad link aggregationVLAN -Support for up to 4,094 VLANs simultaneously -Port-based and 802.1Q tag-based VLANs; MAC-based VLAN; protocol-based VLAN; IP subnet-based VLAN -Management VLAN -Private VLAN with promiscuous, isolated, and community port -Private VLAN Edge (PVE), also known as protected ports, with multiple uplinks -Guest VLAN, unauthenticated VLAN -Dynamic VLAN assignment via RADIUS server along with 802.1x client authentication -CPE VLAN Voice VLAN Multicast TV VLAN VLAN Translation Q-in-Q Selective Q-in-Q Generic VLAN Registration Protocol (GVRP)/Generic Attribute Registration Protocol (GARP) Unidirectional Link Detection (UDLD) Dynamic Host Configuration Protocol (DHCP) Relay at Layer 2 Internet Group Management Protocol (IGMP) versions 1, 2, and 3 snooping IGMP Querier Head-of-Line (HOL) blocking Loopback DetectioN |
| Layer 3 | IPv4 routing -Wirespeed routing of IPv4 packets -Up to 990 static routes and up to 128 IP interfaces IPv6 routing Layer 3 Interface -Configuration of Layer 3 interface on physical port, Link Aggregation (LAG), VLAN interface, or loopback interface Classless Interdomain Routing (CIDR) Policy-Based Routing (PBR) DHCP Server DHCP relay at Layer 3 User Datagram Protocol (UDP) relay |
| Security | Secure Shell (SSH) Protocol Secure Sockets Layer (SSL) IEEE 802.1X (Authenticator role) Web-based authentication STP Bridge Protocol Data Unit (BPDU) Guard STP Root Guard STP loopback guard DHCP snooping IP Source Guard (IPSG) Dynamic ARP Inspection (DAI) IP/MAC/Port Binding (IPMB) Secure Core Technology (SCT) Secure Sensitive Data (SSD) Trustworthy systems Private VLAN Layer 2 isolation Private VLAN Edge (PVE) with community VLAN Port security RADIUS/TACACS+ RADIUS accounting Storm control DoS prevention Multiple user privilege levels in CLI ACLs Support for up to 1,024 rules |
| Management | Web user interface SNMP Remote Monitoring (RMON) IPv4 and IPv6 dual stack Firmware upgrade Port mirroring VLAN mirroring DHCP (options 12, 66, 67, 82, 129, and 150) Secure Copy (SCP) Autoconfiguration with Secure Copy (SCP) file download Text-editable config files Smartports Auto Smartports Textview CLI Cloud services Embedded Probe for Cisco Business Dashboard Cisco Network Plug and Play (PnP) agent Localization Login banner Other management |
| Power over Ethernet (PoE) | |
| Power Dedicated to PoE | 67W |
| Number of Ports That Support PoE | 8 |
| Power consumption | |
| System Power Consumption | 110V=13.84W 220V=14.31W |
| Power Consumption (with PoE) | 110V=80.79W 220V=80.86W |
| Heat Dissipation (BTU/hr) | 275.91 |
| Hardware | |
| Total System Ports | 10 Gigabit Ethernet |
| RJ-45 Ports | 8 Gigabit Ethernet |
| Combo Ports(RJ 45 + Small form-factor pluggable [SFP]) | 2 Gigabit Ethernet combo |
| Console port | Cisco Standard mini USB Type-B / RJ45 console port |
| USB slot | USB Type-A slot on the front panel of the switch for easy file and image management |
| Buttons | Reset button |
| Cabling type | Unshielded Twisted Pair (UTP) Category 5e or better for 1000BASE-T |
| LEDs | System, Link/Act, PoE, Speed |
| Flash | 256 MB |
| CPU | 800 MHz ARM |
| Packet buffer | 1.5 MB |
| Environmental | |
| Unit dimensions (W x H x D) | 268 x 185 x 44 mm (10.56 x 7.28 x 1.73 in) |
| Unit weight | 3.5 kg (7.72 lb) |
| Power | 100-240V 50-60 Hz, external |
| Certification | 23° to 122°F (-5° to 50°C) |
| Storage temperature | -13° to 158°F (-25° to 70°C) |
| Operating humidity | 10% to 90%, relative, noncondensing |
| Storage humidity | 10% to 90%, relative, noncondensing |
| Acoustic noise and Mean Time Between Failure (MTBF) | |
| FAN | Fanless |
| Acoustic Noise | N/A |
| MTBF at 25°C (hours) | 1,706,649 |
Thông số kỹ thuật chi tiết xem tại đây
