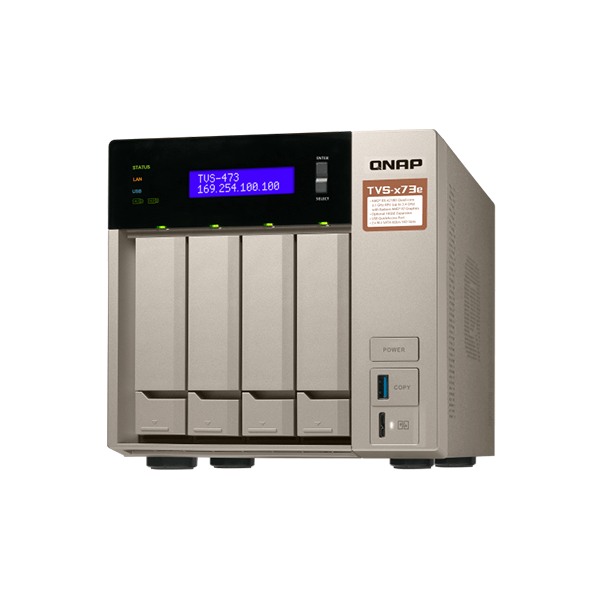

QNAP TVS-473e-4G
0₫
- CPU : AMD R-Series RX-421BD 4-core processor, burst up to 3.4 GHz
- System Memory : 4 GB SO-DIMM DDR4 (2 x 2 GB)
- Drive Bay : 4 x 3.5-inch SATA 6Gb/s, 3Gb/s
- RAID Type : JBOD, Single, RAID 0, 1, 5, 6, 10
- M.2 Slot :2 x M.2 2280/2260 SATA 6Gb/s slots
- Gigabit Ethernet Port (RJ45) : 4
- Wake on LAN (WOL) : Yes
- PCIe Slot : 2 x PCIe Gen 3 x 4
- Form Factor : Tower
- Power Supply Unit : 250W, 100-240V AC, 50-60Hz, 3.5A
Ship nội thành Hà Nội (sau 20phút, trong ngày, hẹn giờ)
Ship COD toàn quốc: 24h-72h (có ship hỏa tốc), ship qua nhà xe
Địa chỉ: Số 4 ngõ 142 Hào Nam, P. Ô Chợ Dừa, Q. Đống Đa, Hà Nội
Thời gian làm việc: Giờ hành chính Thứ 2 đến thứ 7 (9h-12h, 13h30-17h30), Chủ nhật (gọi điện/ liên hệ trước)
Mô tả
THÔNG SỐ KĨ THUẬT QNAP TVS-473e-4G
| CPU | AMD R-Series RX-421BD 4-core processor, burst up to 3.4 GHz |
| CPU Architecture | 64-bit x86 |
| Graphic Processors | Embedded Radeon™ R7 Graphics Processor |
| Floating Point Unit | √ |
| Encryption Engine | (AES-NI) |
| Hardware-accelerated Transcoding | √ |
| System Memory | 4 GB SO-DIMM DDR4 (2 x 2 GB) |
| Maximum Memory | 64 GB (4 x 16 GB) |
| Memory Slot | 4 x SO-DIMM DDR4
For dual- or quad-DIMM configurations, you must use a pair of identical DDR4 modules. Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications. Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting. |
| Flash Memory | 512 MB (Dual boot OS protection) |
| Drive Bay | 4 x 3.5-inch SATA 6Gb/s, 3Gb/s |
| Drive Compatibility | 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Hot-swappable |
The following are not hot-swappable: M.2 SSDs, SSD cache drives, SSDs using PCIe expansion slots.
|
| M.2 Slot | 2 x M.2 2280/2260 SATA 6Gb/s slots
The M.2 SSD is not included as standard.
M.2 SSD operations can easily generate excessive heat. It is recommended to install a heatsink (from QNAP or a third-party provider) on the M.2 SSD. |
| SSD Cache Acceleration Support | √ |
| Gigabit Ethernet Port (RJ45) | 4
Expandable with an optional PCIe adapter
|
| 10 Gigabit Ethernet Port | Optional via a PCIe adapter |
| Wake on LAN (WOL) | √ |
| Jumbo Frame | √ |
| PCIe Slot | 2 Slot 1: PCIe Gen 3 x4 Slot 2: PCIe Gen 3 x4 |
| USB 3.2 Gen 1 port | 4 |
| USB 3.2 Gen 2 (10Gbps) Port | Optional via a PCIe adapter |
| USB QuickAccess | 1 x USB 3.2 Gen 1 Micro-B |
| IR Sensor | (QNAP RM-IR004) |
| HDMI Output | 2, HDMI 1.4b (up to 3840 x 2160 @ 30Hz) |
| Audio Input | 2 x 3.5mm dynamic microphone input jacks |
| Audio Output | 1 x built-in speaker, 1 x 3.5mm line out jack (for amplifiers or speakers)
You cannot use the speakers and the line-out jack simultaneously.
|
| Form Factor | Tower |
| LED Indicators | Status/Power, USB, LAN, Drive 1-4, M.2 SSD 1-2 |
| LCD Display/ Button | √ |
| Buttons | Power, Reset, USB Auto Copy |
| Dimensions (HxWxD) | 188.2 × 199.3 × 279.6 mm |
| Weight (Net) | 4.9 kg |
| Weight (Gross) | 6.05 kg |
| Operating temperature | 0 – 40 °C (32°F – 104°F) |
| Storage Temperature | -20 – 70°C (-4°F – 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | 250W, 100-240V AC, 50-60Hz, 3.5A |
| Power Consumption: HDD Sleep Mode | 33.24 W |
| Power Consumption: Operating Mode, Typical | 56.23 W
Tested fully populated with 2TB hard drives.
|
| Fan | System fan: 1 x 120mm CPU fan: 1 x 60mm |
| System Warning | Buzzer |
| Kensington Security Slot | √ |
| Max. Number of Concurrent Connections (CIFS) – with Max. Memory | 1200 |
Xem chi tiết specification tại đây
