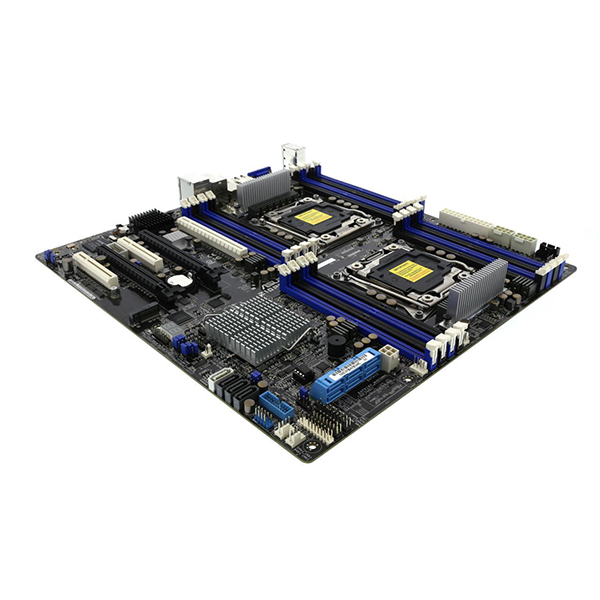

Mainboard Asus Z10PE-D16/4L
0₫
- CPU: Intel Xeon processor E5-2600 v3, v4 product family
- RAM: DDR4 RDIMM/LRDIMM 2400/2133/1866/1600/1333
- Chipset: Intel C612
Ship nội thành Hà Nội (sau 20phút, trong ngày, hẹn giờ)
Ship COD toàn quốc: 24h-72h (có ship hỏa tốc), ship qua nhà xe
Địa chỉ: Số 4 ngõ 142 Hào Nam, P. Ô Chợ Dừa, Q. Đống Đa, Hà Nội
Thời gian làm việc: Giờ hành chính Thứ 2 đến thứ 7 (9h-12h, 13h30-17h30), Chủ nhật (gọi điện/ liên hệ trước)
Mô tả
| Processor / System Bus | 2 x Socket R3 (LGA 2011-3; Square type 80x80mm) Intel® Xeon® processor E5-2600 v4 product family Intel® Xeon® processor E5-2600 v3 product family QPI 6.4 / 8.0 / 9.6 GT/s |
| Core Logic | Intel® C612 PCH |
| Memory | Total Slots : 16 (4-channel per CPU, 8 DIMM per CPU) Capacity : Maximum up to 1024GB LRDIMM Memory Type : DDR4 2400 /2133 /1866*/1600/1333 RDIMM* DDR4 2400 /2133 /1866*/1600/1333 LRDIMM* Memory Size : 32GB, 16GB, 8GB, 4GB RDIMM 64GB, 32GB LRDIMM |
| Expansion Slots | Total Slot : 5 Slot Location 1 : PCI-E x8 (Gen3 X4 Link), MIO supported Slot Location 2 : PCI-E x16 (Gen3 X16 Link) Slot Location 3 : PCI-E x8 (Gen3 X8 Link) Slot Location 4 : PCI-E x16 (Gen3 X16 Link) Slot Location 6 : PCI-E x16 (Gen3 X16 Link) |
| Form Factor | EEB (12″x13″, 305mm x 330mm) |
| ASUS Features | FAN speed control Rack Ready (Rack and Pedestal dual use) ASWM Enterprise |
| Storage | SATA Controller : Intel® C612 10 x SATA3 6Gb/s ports or 9 x SATA3 6Gb/s ports + 1 x M.2 connector Intel® Rapid Storage Technology Enterprise(RSTe) (For Windows Only) (Support Software RAID 0, 1, 5, 10 ) LSI® MegaRAID (For Linux/Windows) (Support Software RAID 0, 1, 10 ) SAS Controller : ASUS PIKE II 3008 8-port SAS HBA card(Optional) ASUS PIKE II 3108 8-port SAS HW RAID card(Optional) |
| Networking | 1 x Dual Port Intel Ethernet Controller i350-AM2 + 1 x Mgmt LAN 1 x Dual Port Intel I350-BT2 Gigabit LAN controller |
| Graphic | Aspeed AST2400 with 32MB VRAM |
| On Board I/O | 1 x TPM header 1 x PSU Power Connector (24-pin SSI power connector + 8-pin SSI 12V + 8-pin SSI 12V power connector) 1 x USB 3.0 pin header , Up to 2 Devices 1 x USB 2.0 pin header 9 x Fan Header , 4pin 1 x SMBus 1 x Chassis Intruder 2 x Front LAN LED 1 x Serial Port Header 1 x M.2 Connector , NGFF Type : 2242, Capacity : 16~128GB |
| Back I/O Ports | 2 x USB 3.1 Gen 1 2 x USB 2.0 1 x VGA Port 4 x GbE LAN 1 x Mgmt LAN 1 x PS/2 KB/Mouse |
| Management Solution | ASWM Enterprise ASMB8-iKVM for KVM-over-Internet |
| Environment | Operation temperature: 10℃ ~ 35℃ Non operation temperature: -40℃ ~ 70℃ Non operation humidity: 20% ~ 90% ( Non condensing) |
| Weight | Gift Box (1-in-1) Net Weight : 1.67 KG Gross Weight : 2.8 KGBulk Pack (10-in-1) Net Weight : 18.3 KG Gross Weight : 20.2 KG |
| Monitoring | CPU Temperature Fan RPM |
| Note | * Please refer to www.asus.com for latest momory AVL update 2400/2133 MT/s@1DPC only |
Đặt mua Mainboard Asus Z10PE-D16/4L
Mainboard Asus Z10PE-D16/4L
0₫
Bạn vui lòng nhập đúng số điện thoại để chúng tôi sẽ gọi xác nhận đơn hàng trước khi giao hàng. Xin cảm ơn!
Đánh giá Mainboard Asus Z10PE-D16/4L
