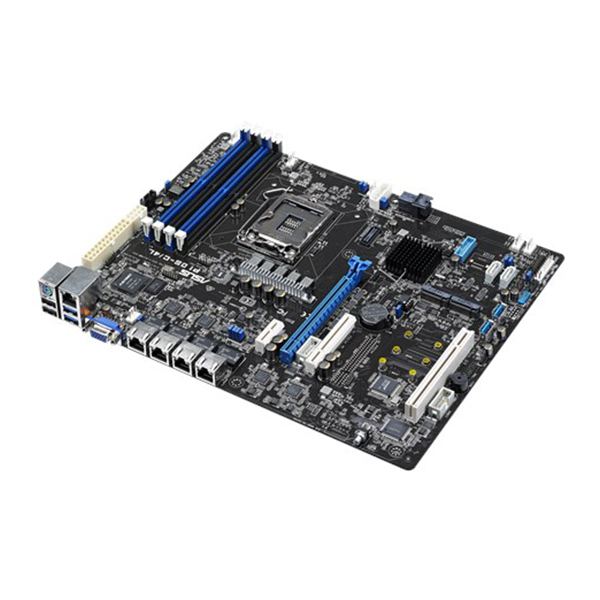

Mainboard Asus P10S-C/4L Server & Workstation Motherboard
0₫
- CPU: Intel Xeon processor E3-1200v5, v6 product family, Intel Core i3 processors, Intel Pentium processors, Intel Celeron processors
- RAM: DDR4 2400/2133 UDIMM non-ECC and with ECC
- Chipset: Intel C232
Ship nội thành Hà Nội (sau 20phút, trong ngày, hẹn giờ)
Ship COD toàn quốc: 24h-72h (có ship hỏa tốc), ship qua nhà xe
Địa chỉ: Số 4 ngõ 142 Hào Nam, P. Ô Chợ Dừa, Q. Đống Đa, Hà Nội
Thời gian làm việc: Giờ hành chính Thứ 2 đến thứ 7 (9h-12h, 13h30-17h30), Chủ nhật (gọi điện/ liên hệ trước)
Mô tả
| Processor / System Bus | 1 x Socket LGA1151 Intel®Xeon®processor E3-1200 v6 product family Intel® Xeon® processor E3-1200 v5 product family Intel® Core™ i3 processors Intel® Pentium™ processors Intel® Celeron™ processors |
| Core Logic | Intel® C232 Chipset |
| Memory | Total Slots : 4 (2-channel) Capacity : Maximum up to 64GB UDIMM Memory Type : DDR4 2400 /2133 UDIMM non ECC and with ECC Memory Size : 16GB, 8GB, 4GB * Refer to support page for more information |
| Expansion Slots | Total Slot : 3 Slot Location 1 : PCI 32bit/33MHz Slot Location 5 : PCI-E x8 (Gen3 X8 Link) Slot Location 6 : PCI-E x16 (Gen3 X16 Link), Auto switch to x8 link if slot 5 is occupied Slot Location 7 : MIO Slot for Audio card Follow SSI Location# |
| Form Factor | ATX (12″x9.6″, 305mm x 244mm) |
| ASUS Features | FAN speed control Rack Ready (Rack and Pedestal dual use) ASWM Enterprise |
| Storage | SATA Controller: Intel® C232 6 x SATA3 6Gb/s ports *1 2 x M.2 connector (2280/2260/2242) *2 SAS Controller : ASUS PIKE II 3008-8i 8-port SAS 12G RAID card(Optional) ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card(Optional) |
| Networking | 4 x Intel® I210AT + 1 x Mgmt LAN |
| Graphic | Aspeed AST2400 with 32MB VRAM |
| On Board I/O | 1 x TPM header 1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector) 1 x USB 3.0 pin header , Up to 2 Devices 1 x USB 2.0 pin header , Up to 2 Devices 2 x USB connector*3 6 x Fan Header , 4pin 1 x SMBus 1 x Chassis Intruder 4 x Front LAN LED 2 x Serial Port Header 1 x Device Power Connector*4 1 x VGA Header 2 x M.2 Connector 1 x Onboard header for optional management card |
| Back I/O Ports | 2 x USB 3.1 Gen 1 2 x USB 2.0 1 x VGA Port 4 x GbE LAN + 1 x Mgmt LAN 1 x PS/2 KB/Mouse |
| Management Solution | ASWM Enterprise Optional ASMB8-iKVM for KVM-over-Internet |
| Weight | Gift Box Net Weight : 0.76 KG Gross Weight : 1.3 KGBulk Pack (10-in-1) Net Weight : 7 KG Gross Weight : 9.5 KG |
| Environment | Operation temperature: 10℃ ~ 35℃ Non operation temperature: -40℃ ~ 70℃ Non operation humidity: 20% ~ 90% ( Non condensing) |
| Accessories | Gift Box (1-in-1) 2 x Support CD 1 x I/O shield 2 x SATA 6G cables 1 x Plate for LGA1151Bulk Pack (10-in-1) 2 x Support CD 1 x I/O shield 1 x Plate for LGA1151 |
| Monitoring | CPU Temperature Fan RPM |
| Note | *1 4 by miniSAS HD *2 2 x M.2 (NGFF 2280/2260/2242, PCIE or SATA signal, gray SATA port will disable when M.2 is SATA signal) *3 2 x USB 3.0 connector (Type A USB socket) *4 4-pin power connector |
