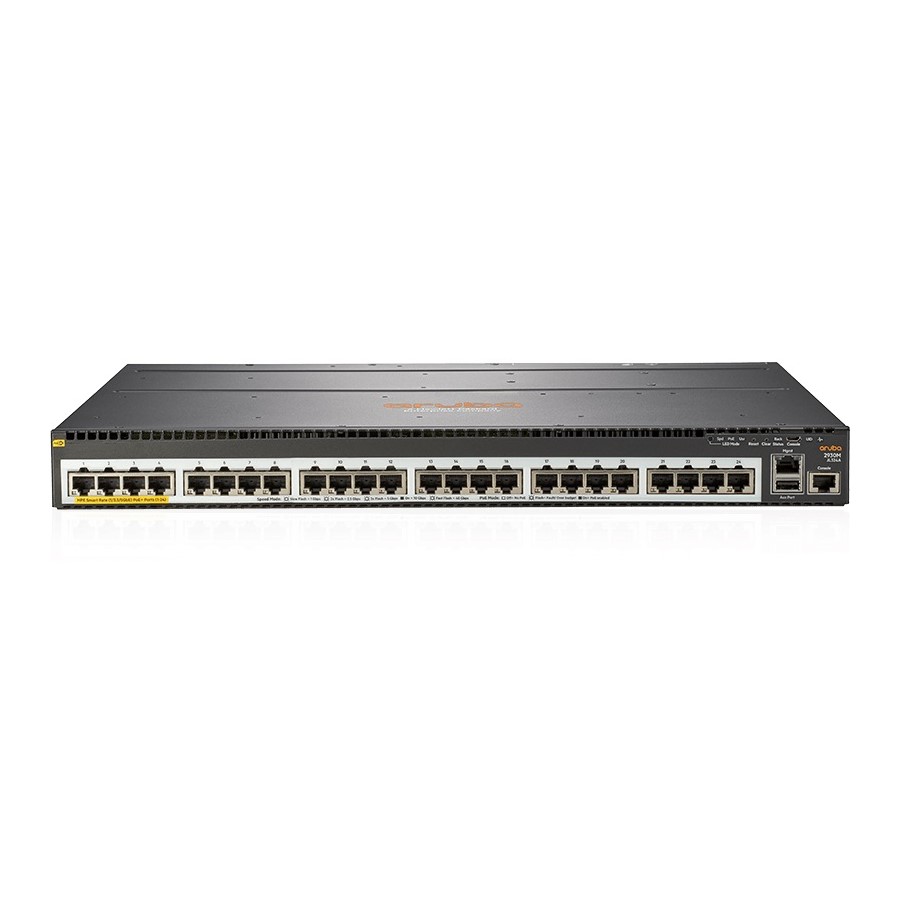

JL324A Aruba 2930M 24 HPE Smart Rate PoE+ 1-slot Switch
0₫
- Thương Hiệu: Aruba
- Mã: JL319A
- 24 Autosensing 100M, 1/2.5/5GBaseT ports PoE+
- 1U – Height
- Bảo Hành : 12 Tháng
(Giá trên chưa bao gồm VAT)
Mô tả
Thông số kỹ thuật JL324A Aruba 2930M 24 HPE Smart Rate PoE+ 1-slot Switch
| I/O ports and slots | 24 Autosensing 1/2.5/5GBaseT ports PoE+ |
| Additional ports and slots | 1 Dual Personality (RJ-45 or USB Micro-B) serial console port
1 USB B port for uploading/downloading files 1 100BASE-T Out of Band Management Port 1 Uplink Slot 1 Stacking Module Slot 2 Power Supply Slots (power supplies not included) |
| Physical characteristics | Dimensions: 1.73″ (Height) x 17.42″ (Width) x 12.77″ (Depth) (4.39cm x 44.25cm x 32.43cm) Weight: 9.92 lbs 4.50 kg |
| Memory and processor | Dual Core ARM Cortex A9 @ 1016 MHz
1 GB DDR3 SDRAM Packet Buffer Size: 12.38MB and 4.5MB Ingress/7.875MB Egress 4GB eMMC |
| Mounting and enclosure | Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available); Horizontal surface mounting; Wall mounting |
| Performance | IPv6 Ready certified
10 Mbps Latency:n/a 100 Mbps Latency: n/a 1000 Mbps Latency: < 3.1us (FIFO 64-byte packets) 2.5 Gbps Latency: < 6.5µs (FIFO 64-byte packets) 5 Gbps Latency: 4.2µs (FIFO 64-byte packets) 10Gbps Latency: <3.4us fifo=”” 64=”” byte=”” packets=”” p=””> Throughput: 112 Mpps Stacking Performance: 100 Gbps Switching Capacity: 320 Gbps Switching Capacity (including Stacking): 420 Gbps Routing table Size: 12,000 IPv4, 1,000 IPv6 in hardware, 200 OSPF, 256 Static, 10,000 RIP Mac Address Table Size: 32768 entries
|
| Environment | Operating temperature: 32° F to 131°F (0° C to 55° C) up to 5000ft, 32° F to 122°F (0° C to 50° C). Derate -1 degree C for every 1000 ft from 5000 ft to 10000 ft Operating relative humidity: 15%to 95% (Non-condens- ing) 10,000 ft Nonoperating/Storage temperature:-40°C to 70°C up to 15000 ft Nonoperating/Storage relative humidity:90% at 65°C (non-condens- ing); 15,000 ft Acoustic: Sound Power LWaD=4.8 Bel, Sound Pressure LpAm, Bystander = 31.2 dB Primary Airflow direction: Front to Back |
| Electrical characteristics | Frequency: 50/60 Hz Maximum Heat: 150 BTU/hr Dissipation: 162 kJ/hr Voltage: JL086A PSU: 100-127/200- 240 VAC JL087A PSU: 110-127/200- 240 VAC Current: JL086A PSU (each): 5.9A/3A JL087A PSU (each): 10A/5.1A Maximum power rating: JL086A PSU (each): 554W JL087A PSU (each): 957W Idle power: 95W PoE power: 860 Watts Hibernate Power: 7W Notes: Idle power is the actual power consumption of the device with no ports connected. Maximum power rating and maximum heat dissipation are the worst case theoretical maximum numbers provide for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated |
| Safety | UL 60950-1, 2nd Edition
EN 60950-1:2006 +A11:2009 : A1:2010 +A12:2011 +A2:2013 IEC60950-1:2005 +A1:2009 +A2:2013 CSA 22.2 No. 60950-1-07 2nd EN60825-1:2007 /IEC 60825-1:2007 Class 1 |
| Emissions | VCCI Class A
CNS 13438 ICES-003 Class A FCC CFR 47 Part 15, Class A EN 55022: 2010/CISPR-22, Class A |
| Management | Aruba AirWave Network Management
IMC—Intelligent Management Center Command-line interface Web browser Configuration menu REST interface SNMP manager Telnet RMON1 FTP Out-of-band management (serial RS-232C, micro USB, Ethernet) |
Chi tiết specs xem tại đây
