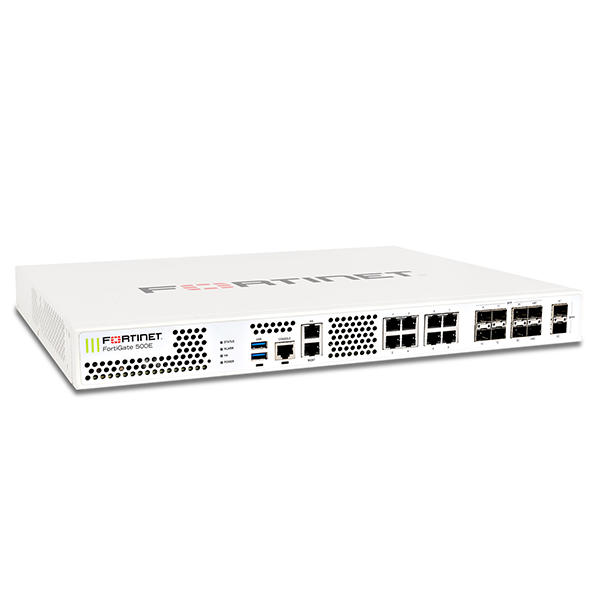

Firewall Fortigate FG-500E
0₫
- Hãng: Fortinet
- Model: FG-500E
- Firewall: 36 Gbps
- IPS: 7.9 Gbps
- Interfaces: Multiple GE RJ45, GE SFP and 10 GE SFP+ Slots
Giá chưa bao gồm VAT
Ship nội thành Hà Nội (sau 20phút, trong ngày, hẹn giờ)
Ship COD toàn quốc: 24h-72h (có ship hỏa tốc), ship qua nhà xe
Địa chỉ: Số 4 ngõ 142 Hào Nam, P. Ô Chợ Dừa, Q. Đống Đa, Hà Nội
Thời gian làm việc: Giờ hành chính Thứ 2 đến thứ 7 (9h-12h, 13h30-17h30), Chủ nhật (gọi điện/ liên hệ trước)
Mô tả
Thông số kỹ thuật Firewall Fortigate FG-500E
FG-500E Specification |
|
| Type | FORTIGATE 500E |
|
Interfaces and Modules |
|
| 10 GE SFP+ Slots | 2 |
| GE SFP Slots | 8 |
| GE RJ45 Interfaces | 8 |
| GE RJ45 Management Ports | 2 |
| USB Ports | 2 |
| RJ45 Console Port | 1 |
| Local Storage | NIL |
| Included Transceivers | 2x SFP (SX 1 GE) |
|
System Performance and Capacity |
|
| IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) | 36 / 36 / 22 Gbps |
| IPv6 Firewall Throughput (1518 / 512 / 86 byte, UDP) | 36 / 36 / 22 Gbps |
| Firewall Latency (64 byte, UDP) | 2 μs |
| Firewall Throughput (Packet per Second) | 33 Mpps |
| Concurrent Sessions (TCP) | 8 Million |
| New Sessions/Second (TCP) | 300,000 |
| Firewall Policies | 10,000 |
| IPsec VPN Throughput (512 byte) | 5 Gbps |
| Client-to-Gateway IPsec VPN Tunnels | 50,000 |
| SSL-VPN Throughput | 5 Gbps |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 10,000 |
| SSL Inspection Throughput (IPS, avg. HTTPS) | 5.7 Gbps |
| SSL Inspection CPS (IPS, avg. HTTPS) | 3,500 |
| Application Control Throughput (HTTP 64K) | 14 Gbps |
| CAPWAP Throughput (1444 byte, UDP) | 18 Gbps |
| Virtual Domains (Default / Maximum) | 10 / 10 |
| Maximum Number of FortiSwitches Supported | 48 |
| Maximum Number of FortiAPs (Total / Tunnel) | 512 / 256 |
| Maximum Number of FortiTokens | 5,000 |
| Maximum Number of Registered FortiClients | 2,000 |
| High Availability Configurations | Active-Active, Active-Passive, Clustering |
|
System Performance — Enterprise Traffic Mix |
|
| IPS Throughput | 5.2 Gbps |
| NGFW Throughput | 5 Gbps |
| Threat Protection Throughput | 4.7 Gbps |
|
Dimensions and Power |
|
| Height x Width x Length | 1.75 x 17.0 x 15.0 inches
44.45 x 432 x 380 mm |
| Form Factor | 1 RU |
| AC Power Supply | 100–240V AC, 60–50 Hz |
| Power Consumption (Average / Maximum) | 95 W / 193 W |
| Current (Maximum) | 6A |
| Heat Dissipation | 613 BTU/h |
| Redundant Power Supplies | optional |
|
Operating Environment and Certifications |
|
| Operating Temperature | 32–104°F (0–40°C) |
| Storage Temperature | -31–158°F (-35–70°C) |
| Humidity | 10–90% non-condensing |
| Noise Level | 43 dBA |
| Operating Altitude | Up to 7,400 ft (2,250 m) |
| Compliance | FCC Part 15 Class A, C-Tick, VCCI, CE, UL/cUL, CB |
| Certifications | ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; USGv6/IPv6 |
Chi tiết specs xem tại đây
