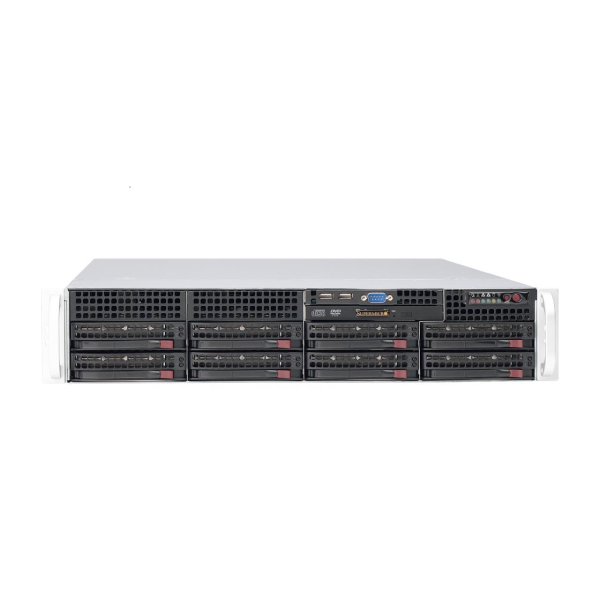

Chassis Supermicro CSE-825TQ-600LPB
0₫
SUPERCHASSIS 825TQ-600LPB (CSE-825TQ-600LPB)
- Form Factor: Rack
- PSU: 600W Platinum
- Mainboard Support: m-ATX & ATX & E-ATX
- Hot-swap HDD: 8×3.5″
- Fan: 3x80mm
- Expansion Slot: 7 slot
- Bảo hành chính hãng 12 THÁNG
(Giá chưa bao gồm thuế VAT)
Ship nội thành Hà Nội (sau 20phút, trong ngày, hẹn giờ)
Ship COD toàn quốc: 24h-72h (có ship hỏa tốc), ship qua nhà xe
Địa chỉ: Số 4 ngõ 142 Hào Nam, P. Ô Chợ Dừa, Q. Đống Đa, Hà Nội
Thời gian làm việc: Giờ hành chính Thứ 2 đến thứ 7 (9h-12h, 13h30-17h30), Chủ nhật (gọi điện/ liên hệ trước)
Mô tả
CHASSIS SUPERMICRO CSE-825TQ-600LPB KEY FEATURE
- 2U chassis supports for maximum motherboard sizes – 13.68″ x 13″, E-ATX 12″ x 13″, ATX 12″ x 10″ motherboards
- 8 x 3.5″ hot-swap SAS/SATA drive bay w/ full SES-II support on SAS motherboards, 2 x 3.5″ fixed drive bay
- 8-port 2U TQ (W/ AMI 9072) backplane, support up to 8x 3.5-inch SAS/SATA HDD
- 1U 600W platinum efficiency multiple output power supply w/PMBus
- 7 low-profile expansion slot(s)
- 3 x 8cm (7000 RPM) hot-swap PWM cooling fan(s)
CHASSIS SUPERMICRO CSE-825TQ-600LPB SPECIFICATIONS
| Product Type/Brand | Chassis Supermicro |
| PRODUCT SKUs | |
| CSE-825TQ-600LPB | SuperChassis 825TQ-600LPB |
| FORM FACTOR | |
| 2U chassis supports for maximum motherboard sizes – 13.68″ x 13″, E-ATX 12″ x 13″, ATX 12″ x 10″ motherboards | |
| PROCESSOR SUPPORT | |
| Dual and Single Intel® and AMD processors | |
| DIMENSIONS | |
| Height | 3.5″ (89 mm) |
| Width | 17.2″ (437 mm) |
| Depth | 25.5″ (647 mm) |
| Gross Weight | 52 lbs (23.59 kg) |
| Pakaging (W x H x L) | 26.7″ (678 mm) x 11.4″ (290 mm) x 34.5″ (876 mm) |
| Available Color | Black |
| EXPANSION SLOTS | |
| 7 low-profile expansion slot(s) | |
| DRIVE BAYS | |
| 8 x 3.5″ hot-swap SAS/SATA drive bay w/ full SES-II support on SAS motherboards 2 x 3.5″ fixed drive bay |
|
| BACKPLANE | |
| 8-port 2U TQ (W/ AMI 9072) backplane, support up to 8x 3.5-inch SAS/SATA HDD | |
| PERIPHERAL DRIVES | |
| Optional 1 x slim DVD-ROM drive bay 2 x USB 2.0 ports 1 x COM port tray Optional 2 x USB 3.0 ports |
|
| FRONT PANEL | |
| Buttons | Power On/Off button System Reset Button |
| LEDs | 2 Network Activity LEDs HDD activity LED Power Status LED Power Fail LED System Information LED |
| SYSTEMS COOLING |
|
| Fans | 3 x 8cm (7000 RPM) hot-swap PWM cooling fan(s) |
| POWER SUPPLY |
|
| 1U 600W platinum efficiency multiple output power supply w/PMBus | |
| Power Efficiency | 92% |
| Total Output Power and Input | 600W with Input 100 – 240Vac |
| AC Input Frequency | 50 – 60 Hz |
| Dimensions (L x W x H) | 279.4 x 76 x 40.4 mm |
| Output Type | 24pin ATX |
| -12V | Max: 0.5A / Min: 0A |
| +12V | Max: 49A / Min: 0.5A (100Vac – 240Vac) |
| +5V | Max: 18A / Min: 0.5A |
| +3.3V | Max: 15A / Min: 0.5A |
| +5Vsb | Max: 3A / Min: 0A |
| +12Vsb | Max: NAA |
| Certification |  Platinum Certified |
| REGULATORY (POWER SUPPLY) |
|
| Power Supply Safety / EMC | BSMI CCC CE/EMC FCC class B TUV/CB UL/CUL |
CHASSIS SUPERMICRO CSE-825TQ-600LPB FULL SPECIFICATIONS – CLICK HERE
